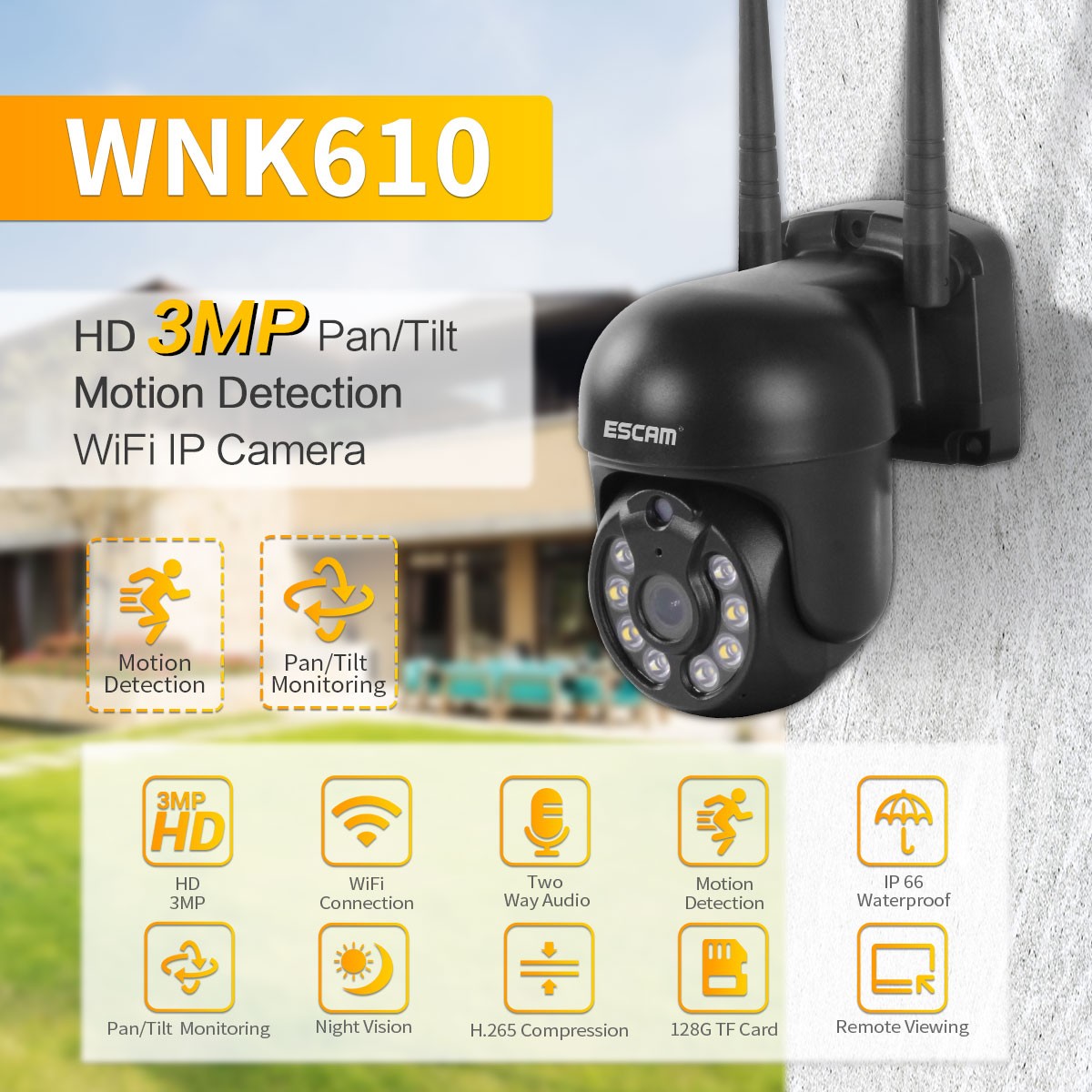

ESCAM WNK610 motion detection WIFI connection 3MP two-way voice smart dual-light source night vision H.265 camera


Free Shipping

Overview and Specifications:

Product Attribute
Type : IP Camera
Style : Dome Camera
High Definition : 3.0 Megapixels
Connectivity : Closed System/CCTV Wired
Lens (mm) : 4mm
Supported Operating Systems : Windows 7,Windows 10
Model Number : ESCAM WNK610
Sensor : CMOS
Technology : Infrared

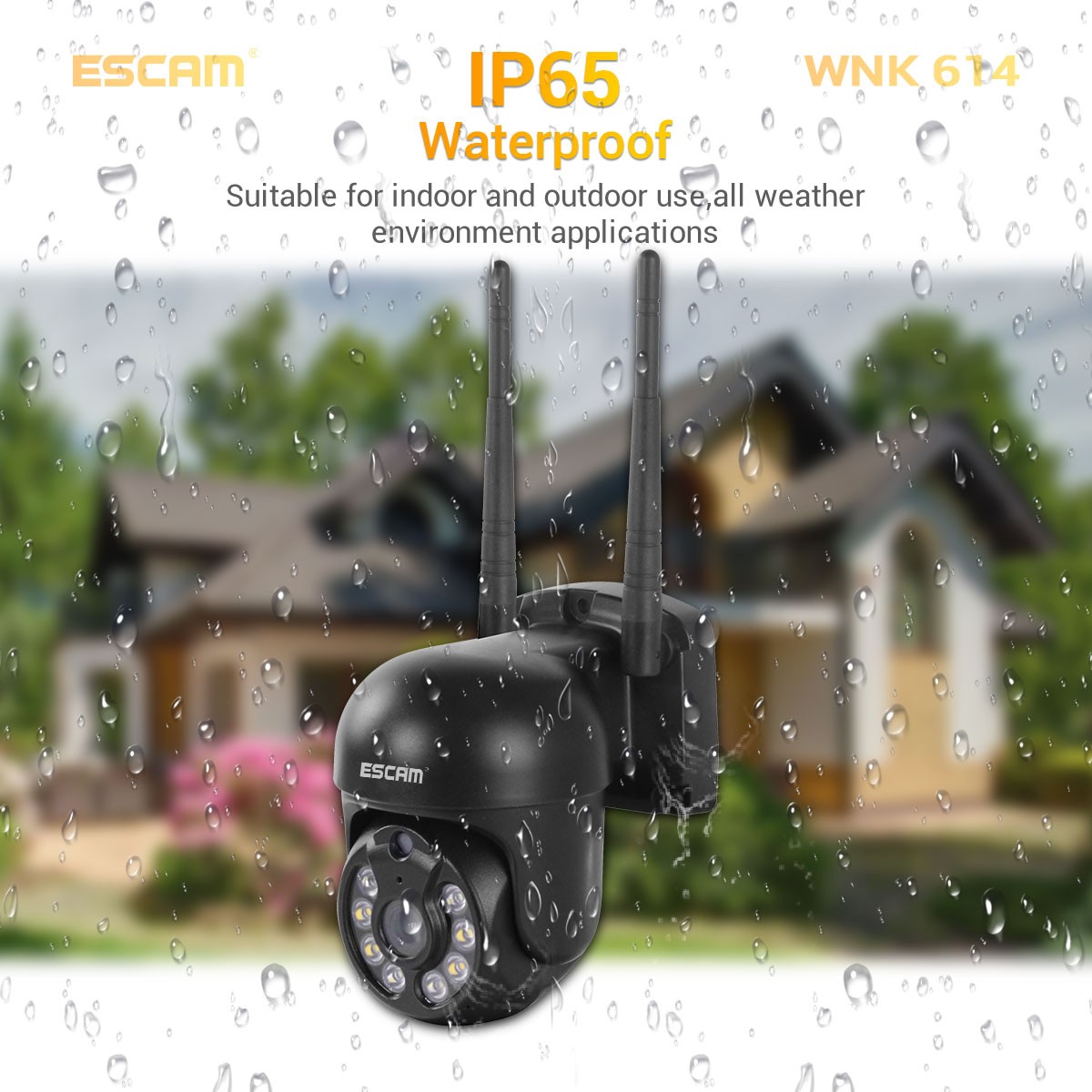

Special Features : Waterproof / Weatherproof
Sensor Brand : SmartSens
Supported Mobile Systems : Android,iOS
Power Consumption(W) : 12
Alarm Action : telefon Alarm
Power Supply(V) : 12
Network Interface : Wi-Fi/802.11/b/g

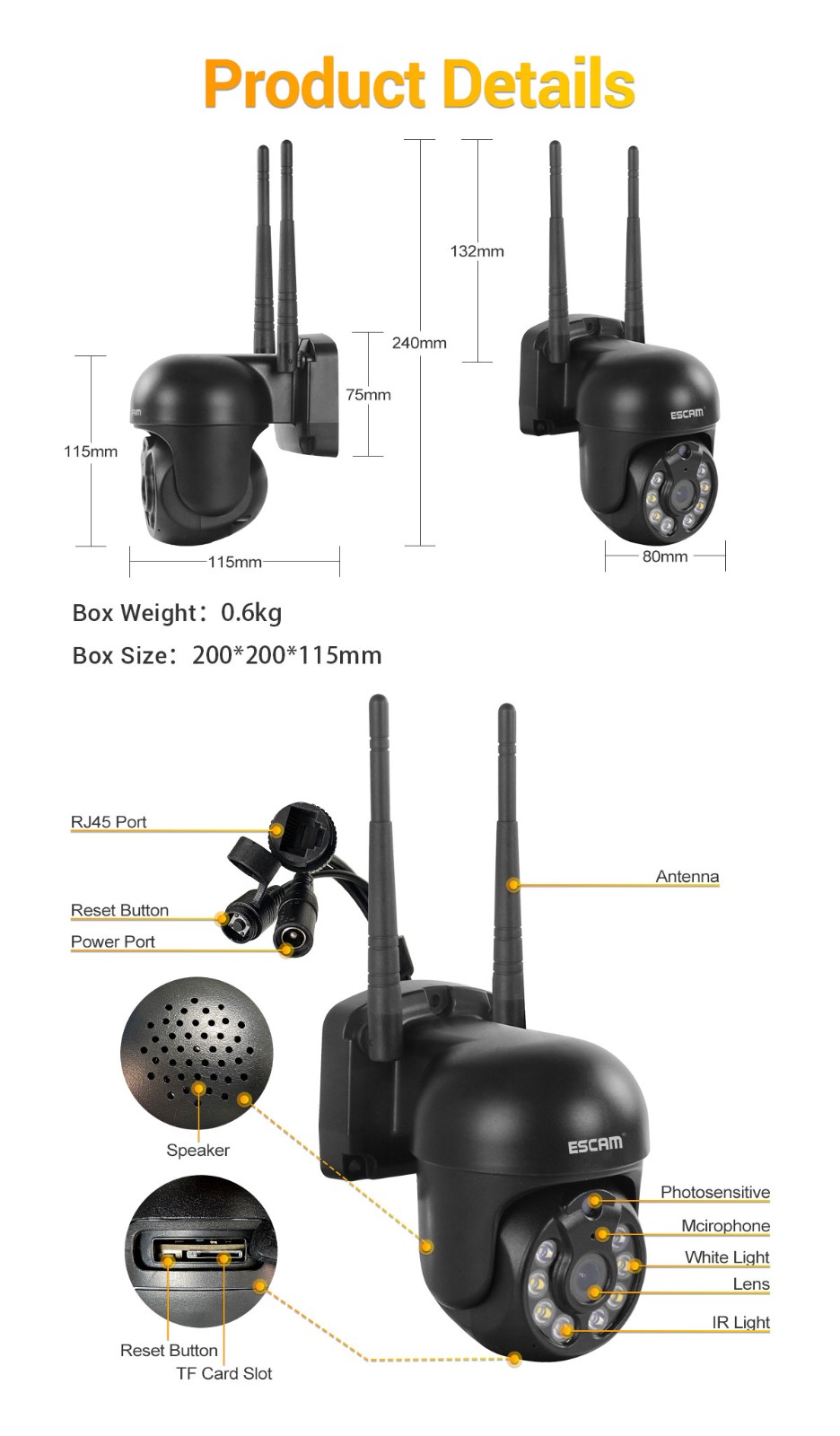

Dimensions (L x W x D)(mm) : 200*200*115
IR Distance(m) : 10
Video Compression Format : H.265
Viewing Angle (Degree) : 75°
Minimum Illumination(Lux) : 0.05
Audio Output : Other
is_customized : No
Wall Bracket : Side
Color : Black
Installation : Side
Storage : 128G
Power Supply : Normal
TF Card : None
Pixel : 3MP
Origin : CN(Origin)
Certification : CE

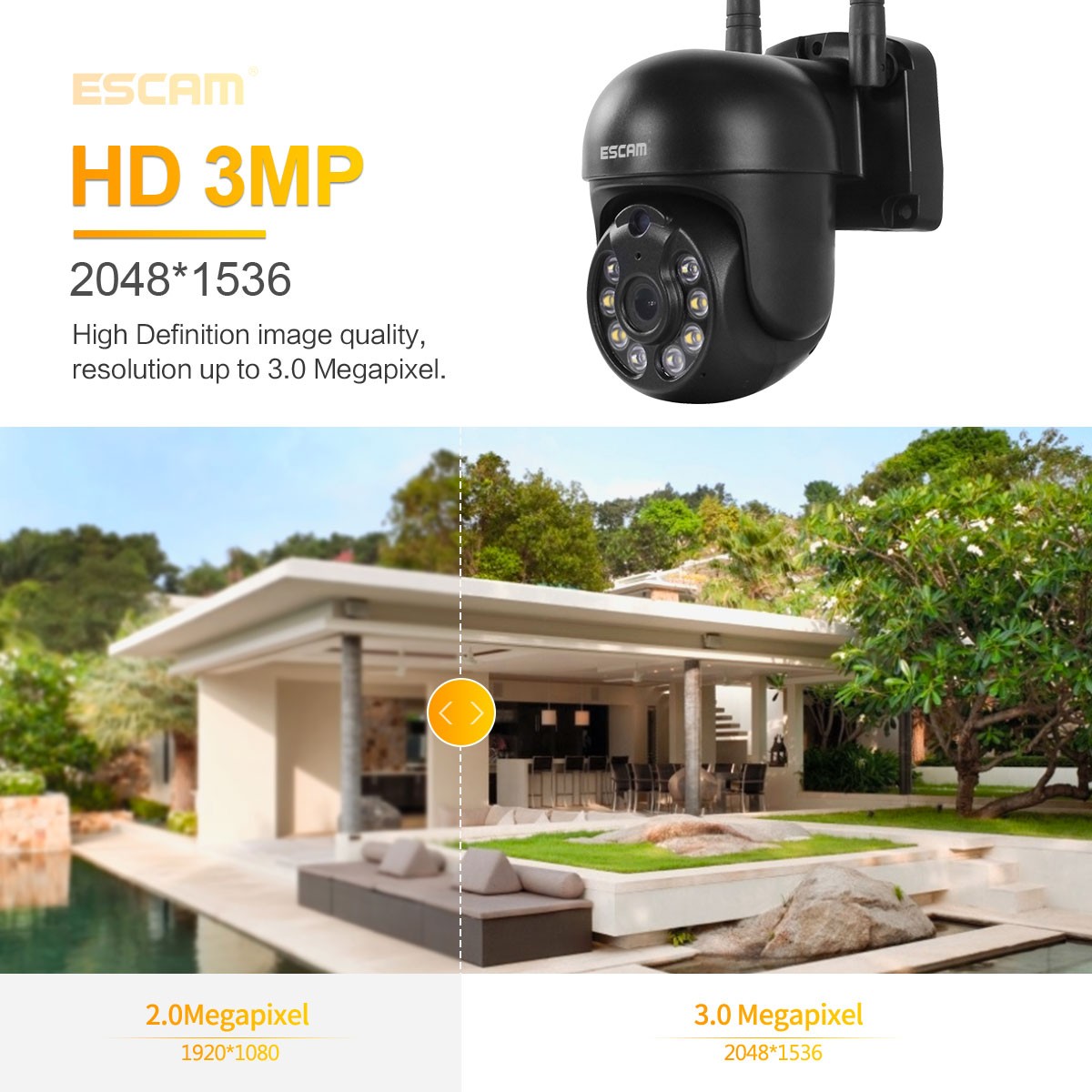

* 3MP high-definition pixels, clear and delicate images,

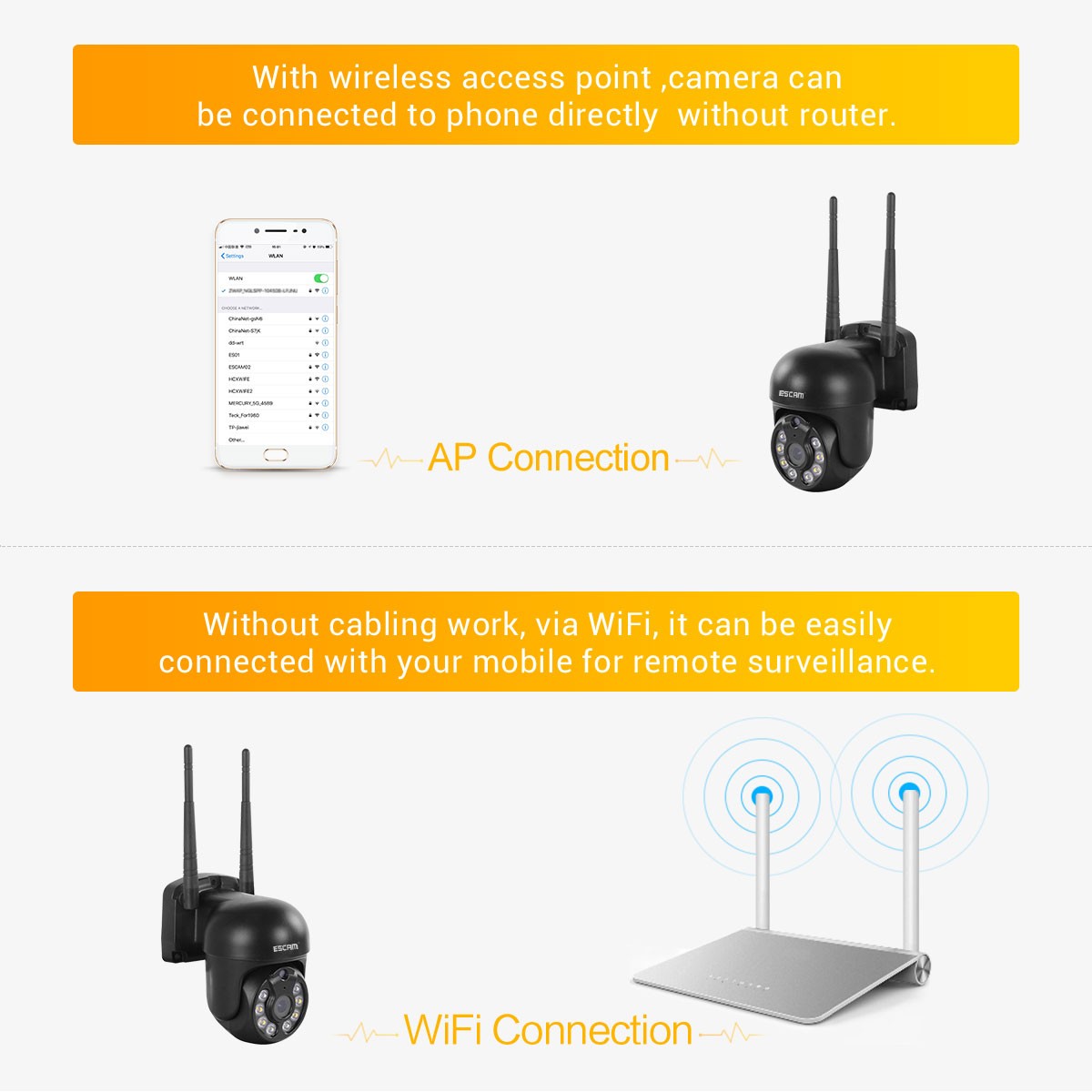

* Wifi connection, scan the QR code to easily connect the camera and the network, the operation is simple and convenient
* Comes with hotspot connection, can view and replay video without internet
* Support cloud storage and local TF card video storage to ensure safe storage of video data
* Built-in high-sensitivity MIC and speaker, support two-way voice intercom
* Intelligent mobile tracking, it will automatically track when people break into the area
* Area motion detection, push alarm information
* Horizontal rotation of 350 degrees, vertical rotation of 90 degrees, 10 preset positions
* Support remote monitoring by mobile phone and PC client, view the live situation anytime and anywhere
* Intelligent humanoid detection, filtering false positives, accurately guarding your safety
Product parameters:
Model pixel Model WNK610
3 million pixels
system structure Embedded Linux real-time operating system
sensor 1/2.7” CMOS Sensor, color: 0.1 Lux, black/white: 0.01 Lux
Video processing H.264/H.265 video encoding, support dual stream
Image output Main stream: 2304*1296@15fps; Sub stream: 640×360@15fps
shutter Auto shutter
Lens without
Day and night conversion mode IR-CUT infrared filter type support infrared / full color / smart three modes
Noise reduction Support 2D/3D noise reduction
Wide dynamic Support digital wide dynamic
Image flip Support horizontal and vertical flip
Audio processing G.711 codec standard, support audio and video synchronization
audio port 1 input, level 2Vp-p, impedance 1kΩ, support MIC/pickup input; 1 output, impedance 8Ω, 1W output power, support direct speakers
Wired network 1 RJ45 Ethernet interface, 10/100M adaptive; support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP and other network protocols
wireless network 802.11b/g/n
IR signal interface 1 photoresistor interface, 1 IR-CUT drive interface, support dual light source lamp panel control (dual IO control, no lamp panel MCU)
PTZ interface support
Motorized lens interface without
Motor interface without
Alarm I/O 1/0 (support PIR trigger to send alarm, optional)
Reset button interface support

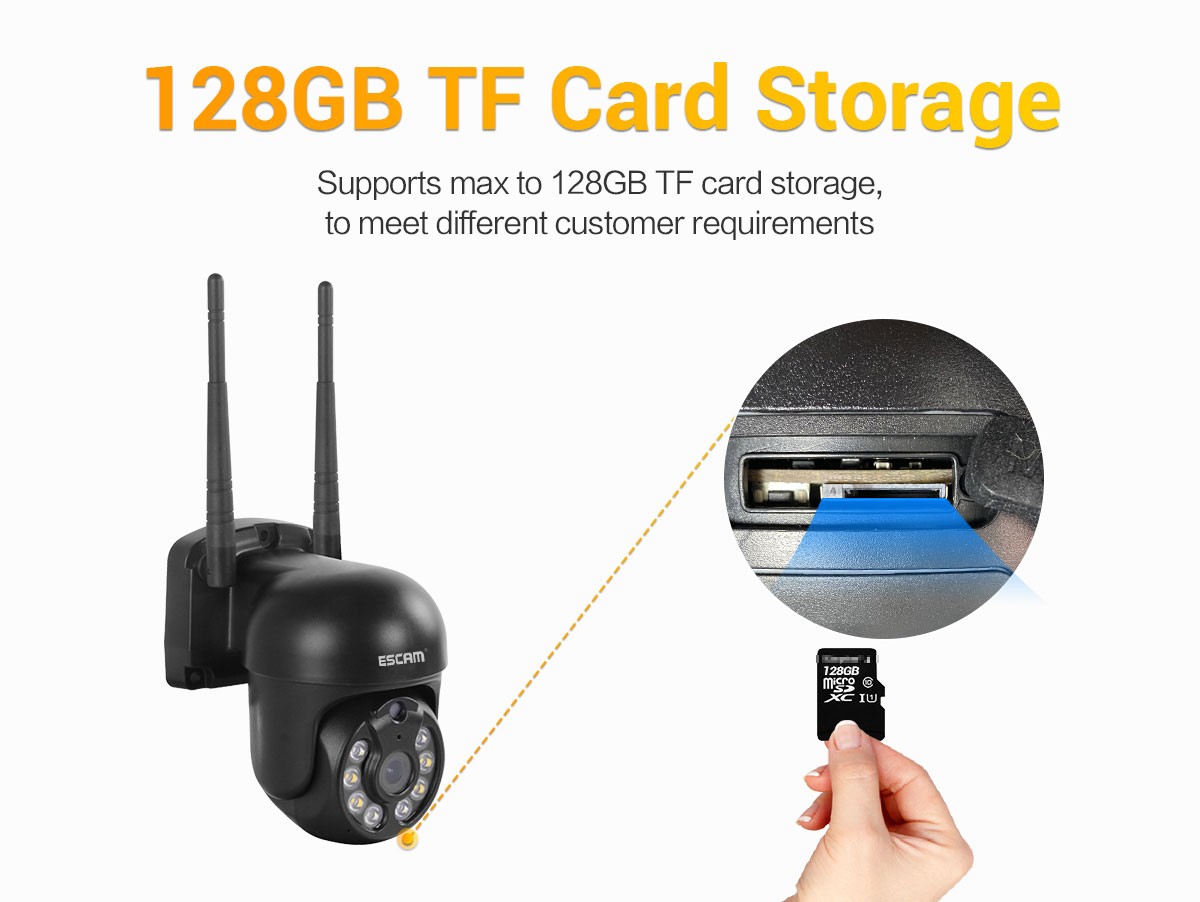

SD card slot Support 128G
Function Motion detection; push alarm information; support remote monitoring of mobile phones and clients
Night vision 4 infrared + 4 white light
Package Dimension 200*200*115mm
Package Weight 0.6kg

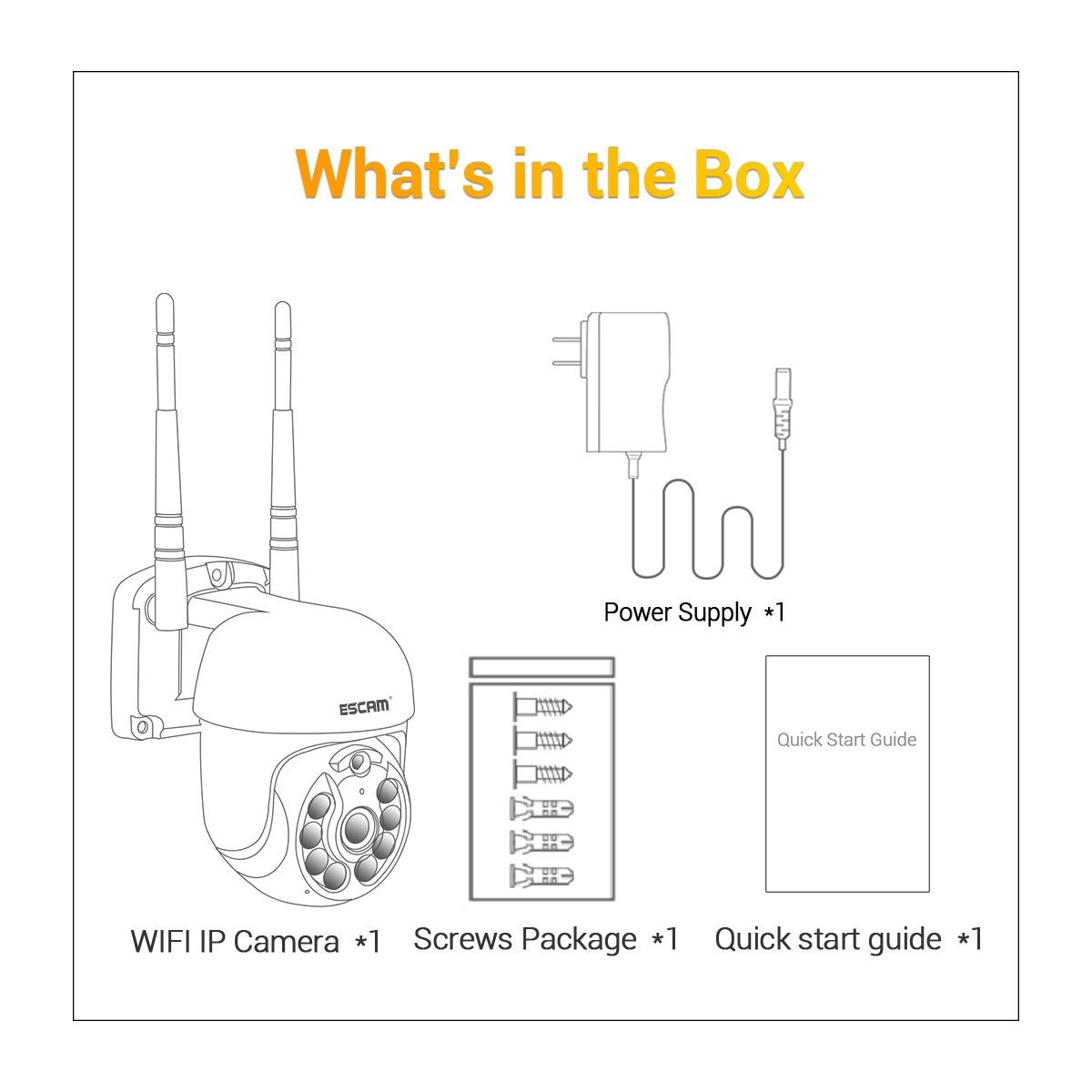

Accessories Camera*1, screw pack*1, power adapter*1, manual*1

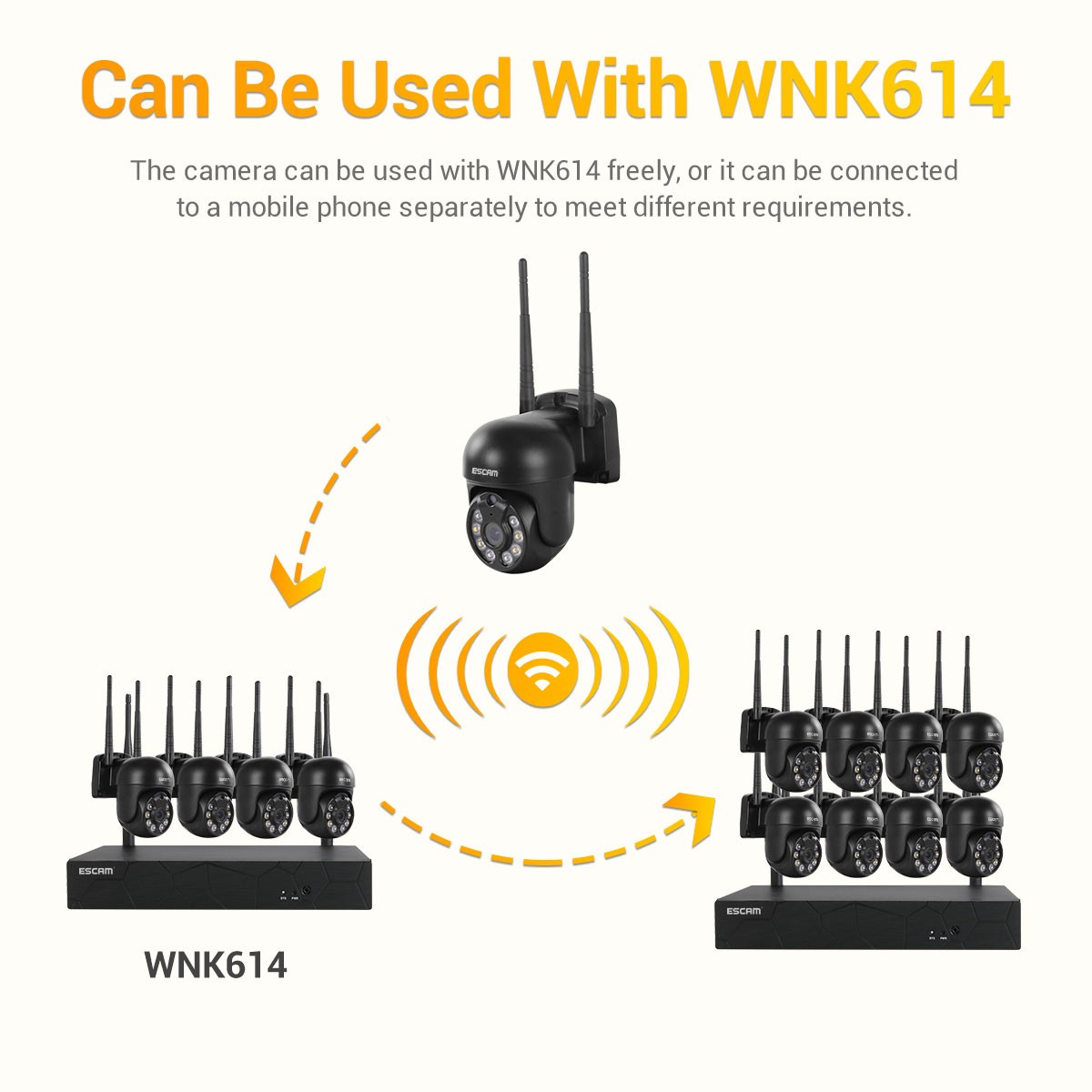

Can be used with WNK614
