Overview and Specifications:
Sonar Coverage : 45 degrees beam angle in 200Khz of FFC1108-1
Sonar Frequency : Cable
Power Input : AAA
Detecting Range : 0.6-183 Meter
Language : English
Power Source : No. 7 Battery
1. The monitor provides information
from sonar sensors that detect water and fish.

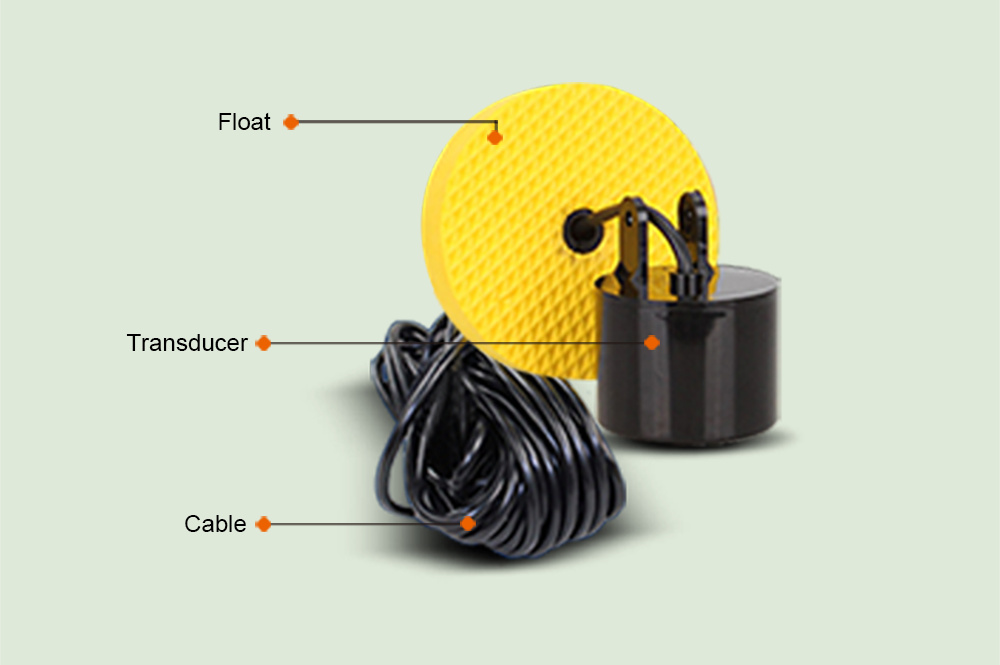

2. The transducer can detect water up
to 100m, and beam angle 45 degrees in 200kHz.
3. Show water depth, fish location,
and bottom grass & rock.
4. User selectable sensitivity, depth
units, and fish alarm setting.
Display: 2inch TN / ANTI-UV LCD
Back lighting: White LED
Depth Capability: 328 feet (100m)
Power supply: 4 AAA alkaline batteries
Waterproof design: level-4
Show water depth, fish location, and
bottom grass & rock
User selectable sensitivity, depth
units, and fish alarm setting
Operating Temperature: 14degF to
122degF (-10℃ to 50℃)
