WAFU smart TT lock Bluetooth Fingerprint Door Lock Digital Keyboard Smart Card Combination knob Lock For Home / Office / Hotel

Price:
$100.49

Free Shipping

Overview and Specifications:

Product Attribute
Model Number : WF-Q1	Origin : CN(Origin)

WAFU smart TT lock Bluetooth Fingerprint Door Lock Digital Keyboard Smart Card Combination knob Lock For Home / Office / Hotel DIY Door Lock（WF-Q1)

■ Product Description

The lock adopts buletooth（TTLOCK ) as the main control, supports low power consumption bluetooth(BLE4.0), manage the lock(fingerprint, passcode. IC card, e-key).

The lock supports firmware update, and software functions can be expanded through firmware update.

The lock is suitable for and widely used in commercial office, residential, government departments, army, banks, hospitals, etc.

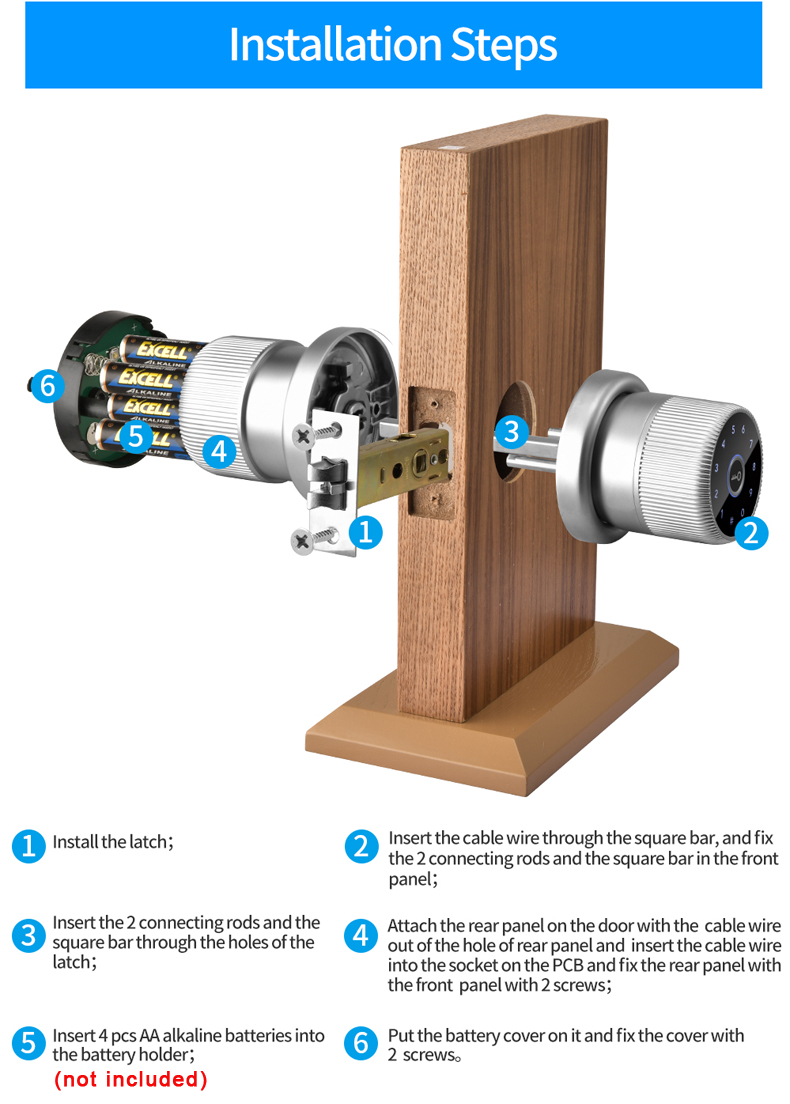

Installation Condition

Door frame：≥ 110mm;

Door thickness: 35 ～ 65mm;

Features

Tilted structure design for better view and convenient operation;

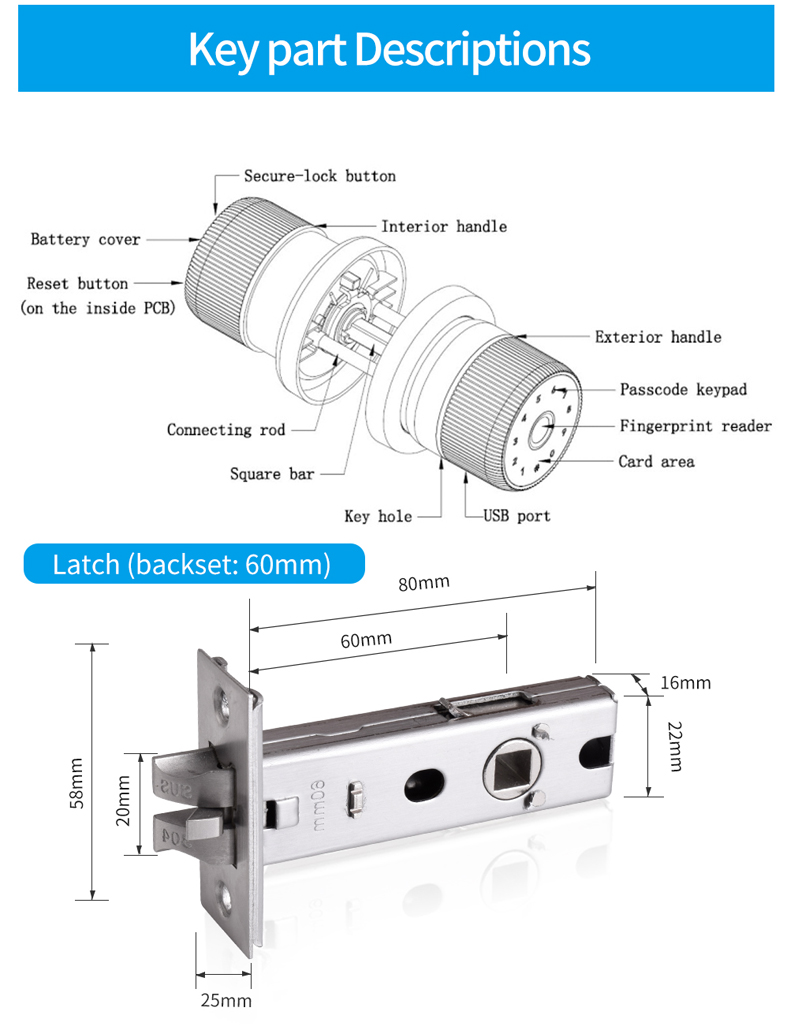

Replace traditional cylindrical knobset directly without any extra hole;

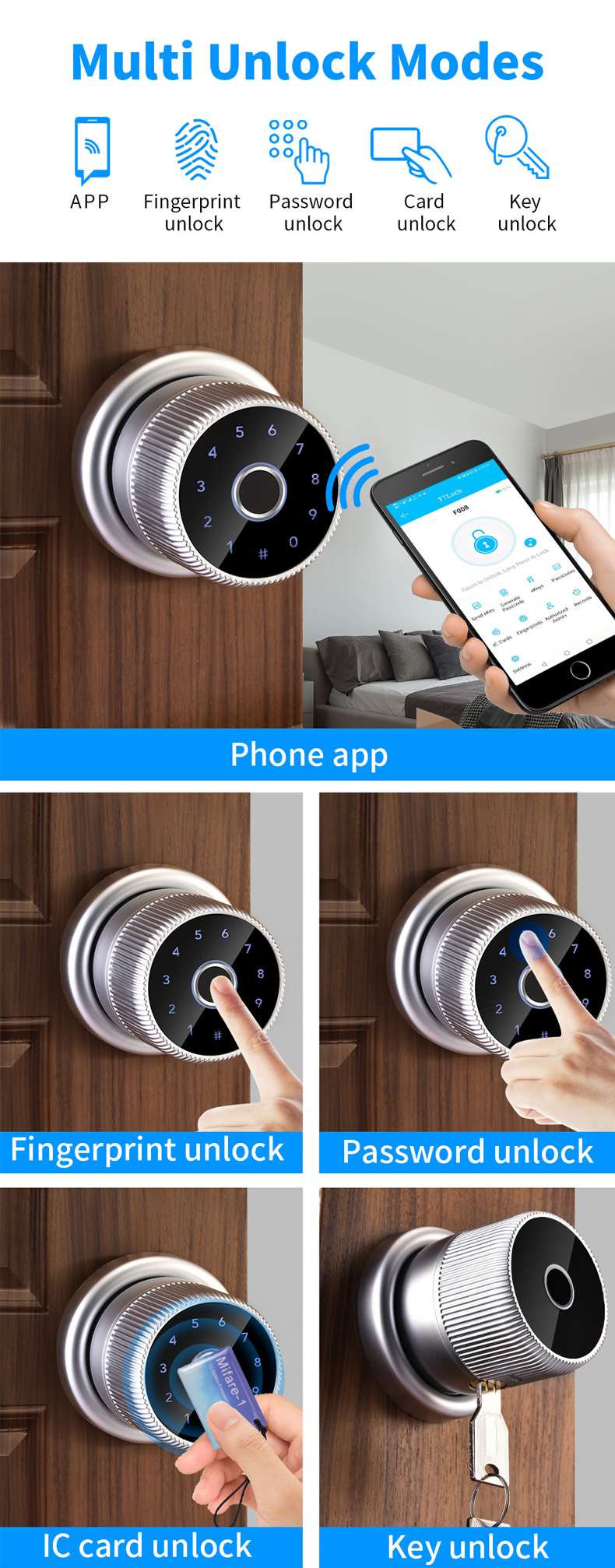

Multiple Unlock modes: Fingerprint/ Password/M1 card /App/Key;
Wrong password (or illegal card) alarm;
Low Voltage alarm;

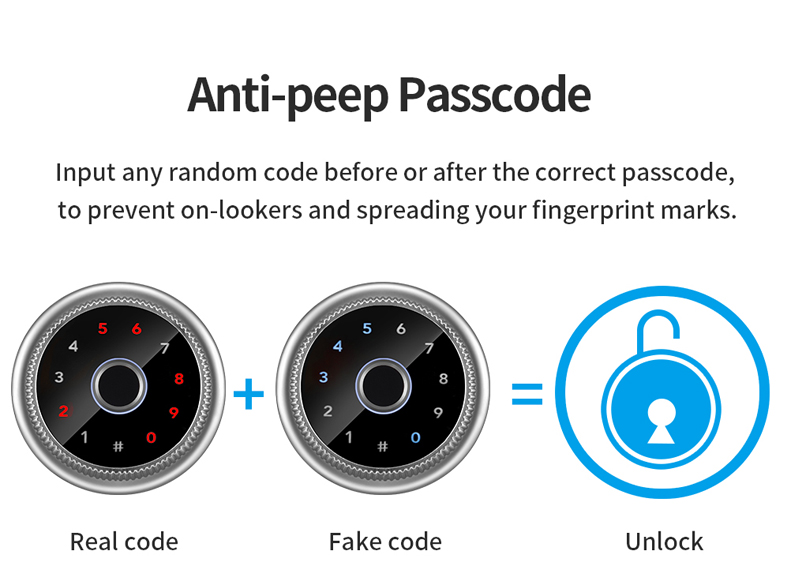

Security Password;

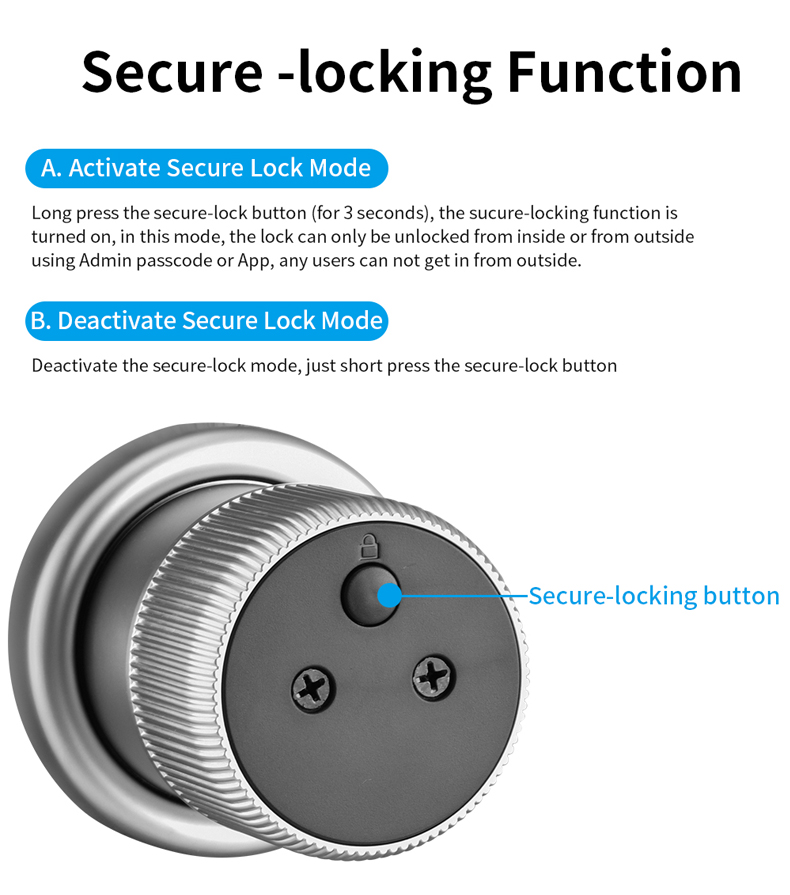

Security Locking by switch from inside;

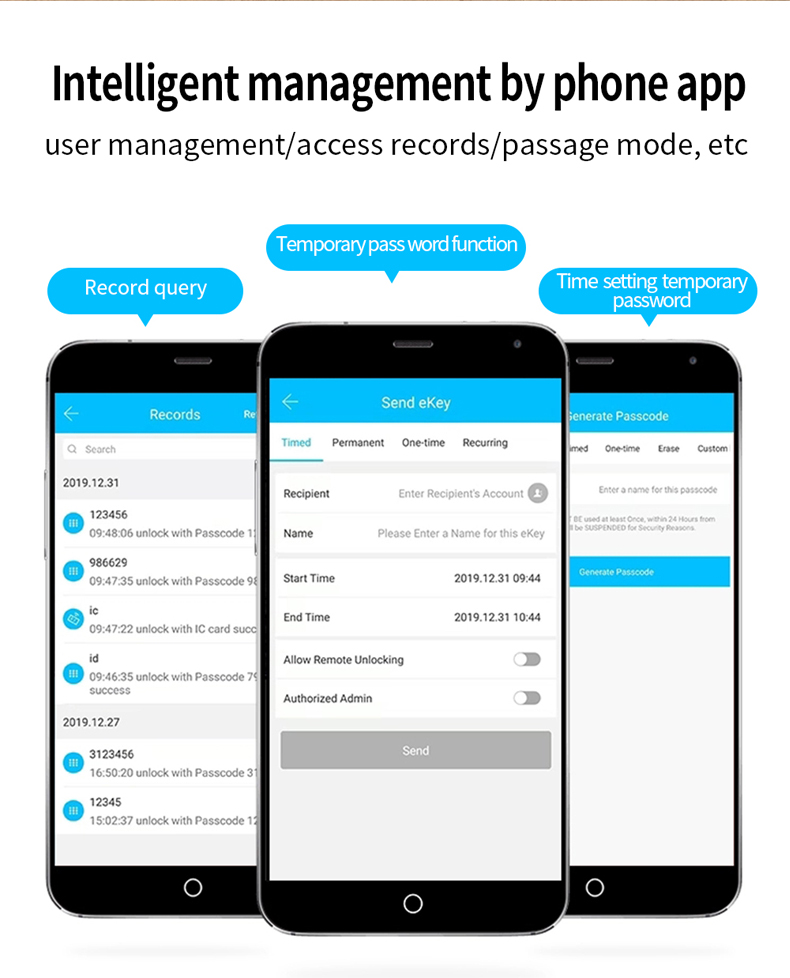

Up to 1000pcs access records can be queried for monitoring;
Emergency power back-up(USB port);
Mechanical key override.

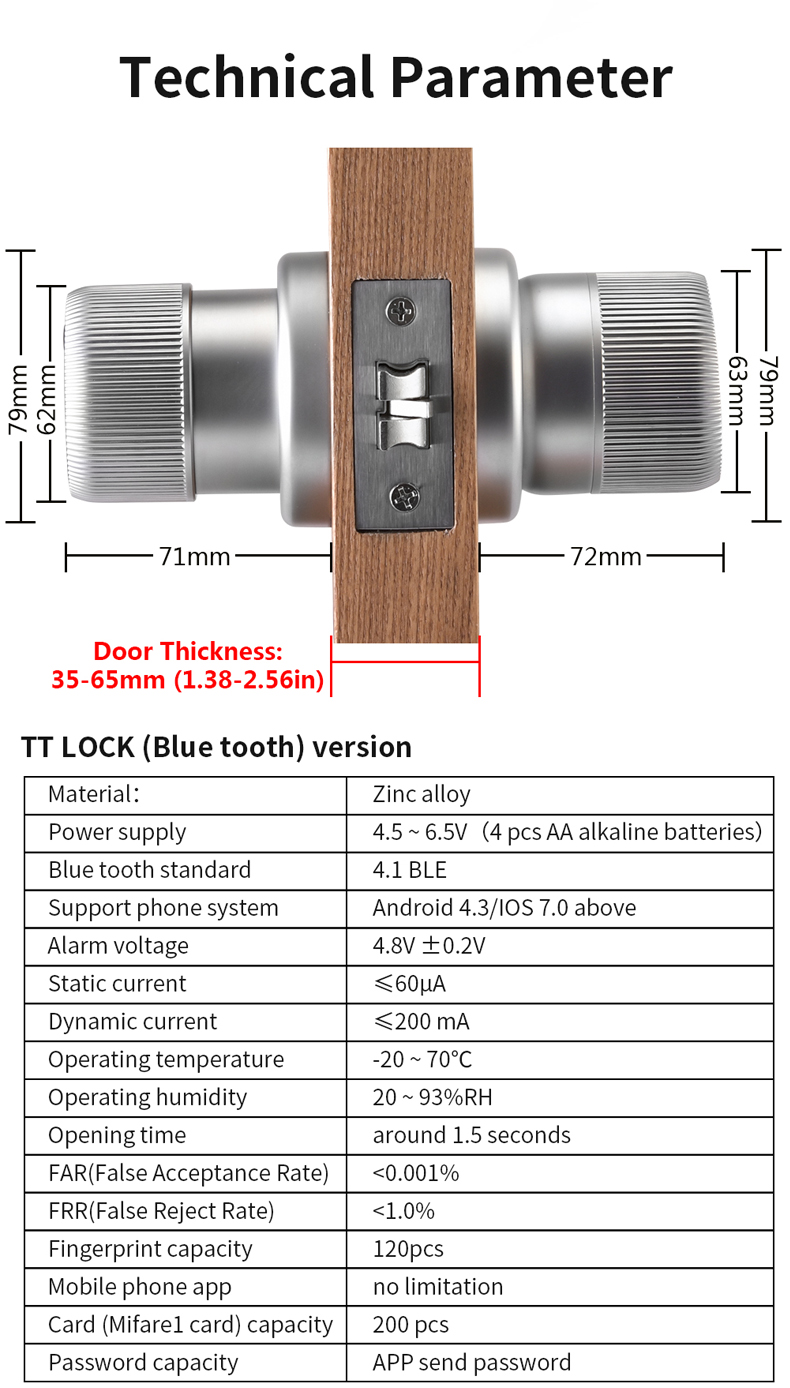

Technical Parameter

Material	Zinc Alloy
Power supply	4.5 ~ 6.5V（4 pcs AA alkaline batteries not included)
Blue tooth standard	4.1 BLE
Support phone system	Android 4.3/IOS 7.0 above
Alarm voltage	4.8V ±0.2V
Static current	≤60µA
Dynamic current	≤200 mA
Operating temperature	-20 ~ 70℃
Operating humidity	20 ~ 93%RH
Opening time	around 1.5 seconds
FAR(False Acceptance Rate)	<0.001%
FRR(False Reject Rate)	<1.0%
Fingerprint capacity	120pcs
Mobile phone app	no limitation
Card (Mifare1 card) capacity	200 pcs
Password capacity	APP send password	150 pcs
	Custom password	150 pcs
